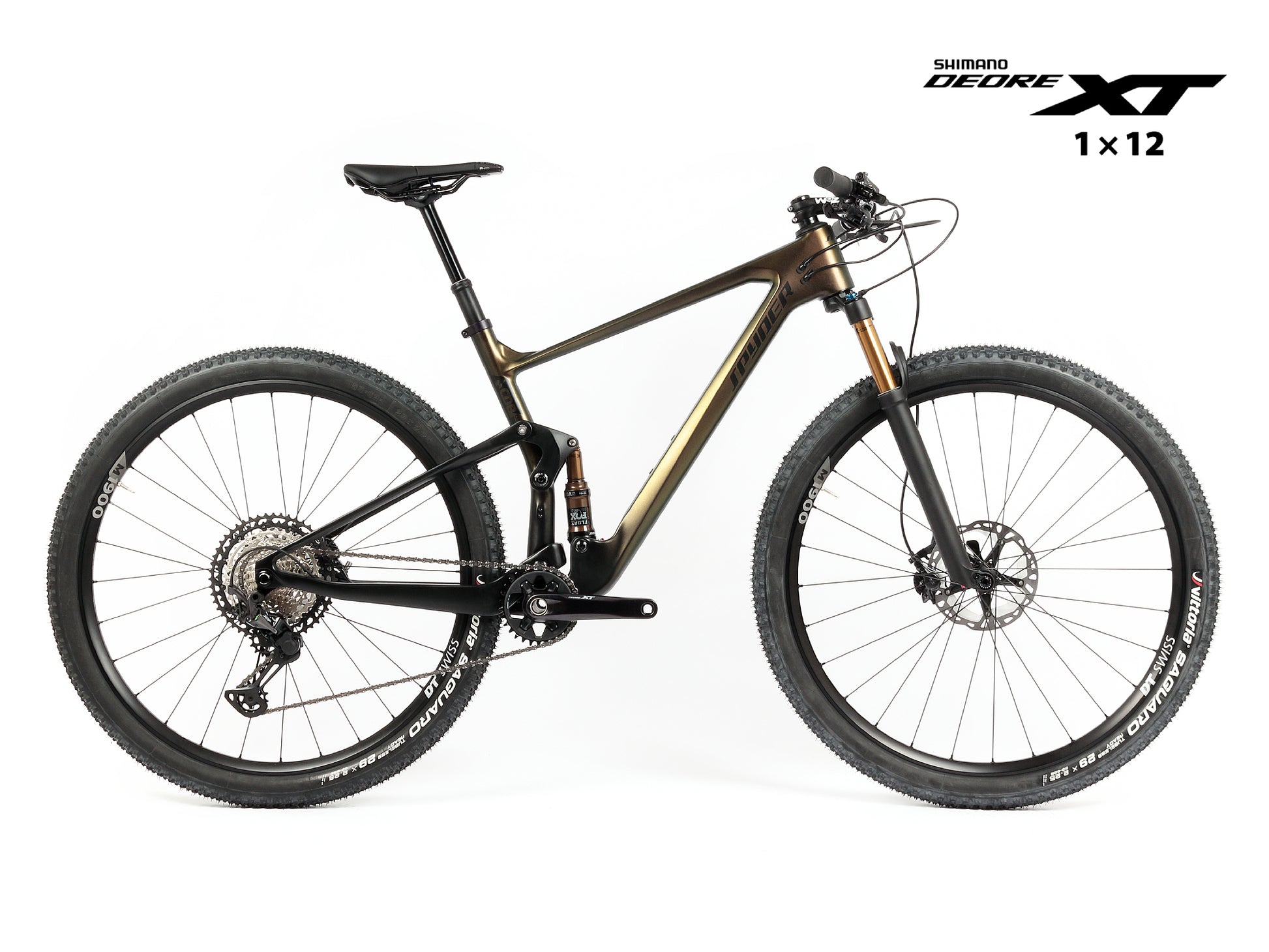

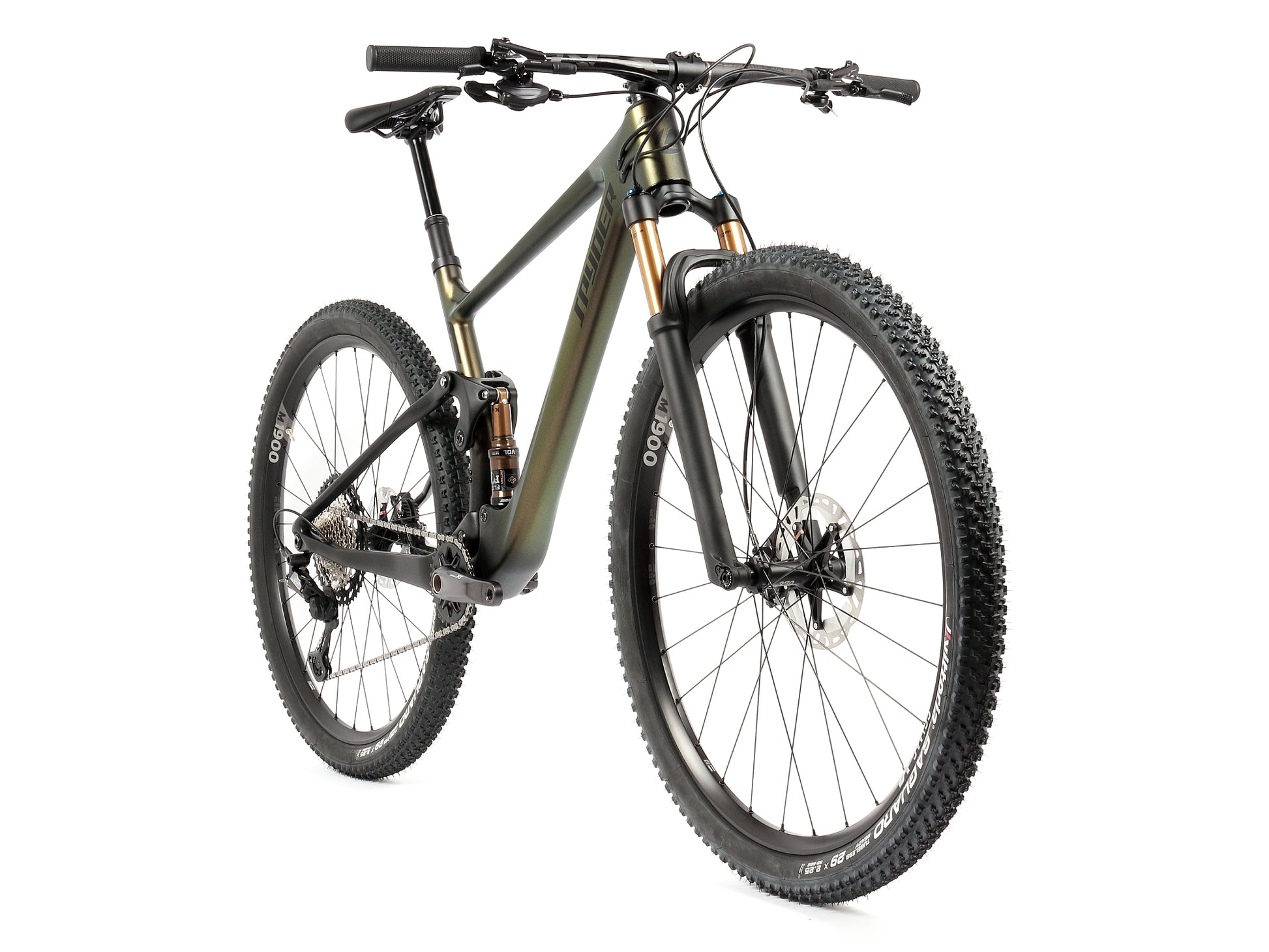

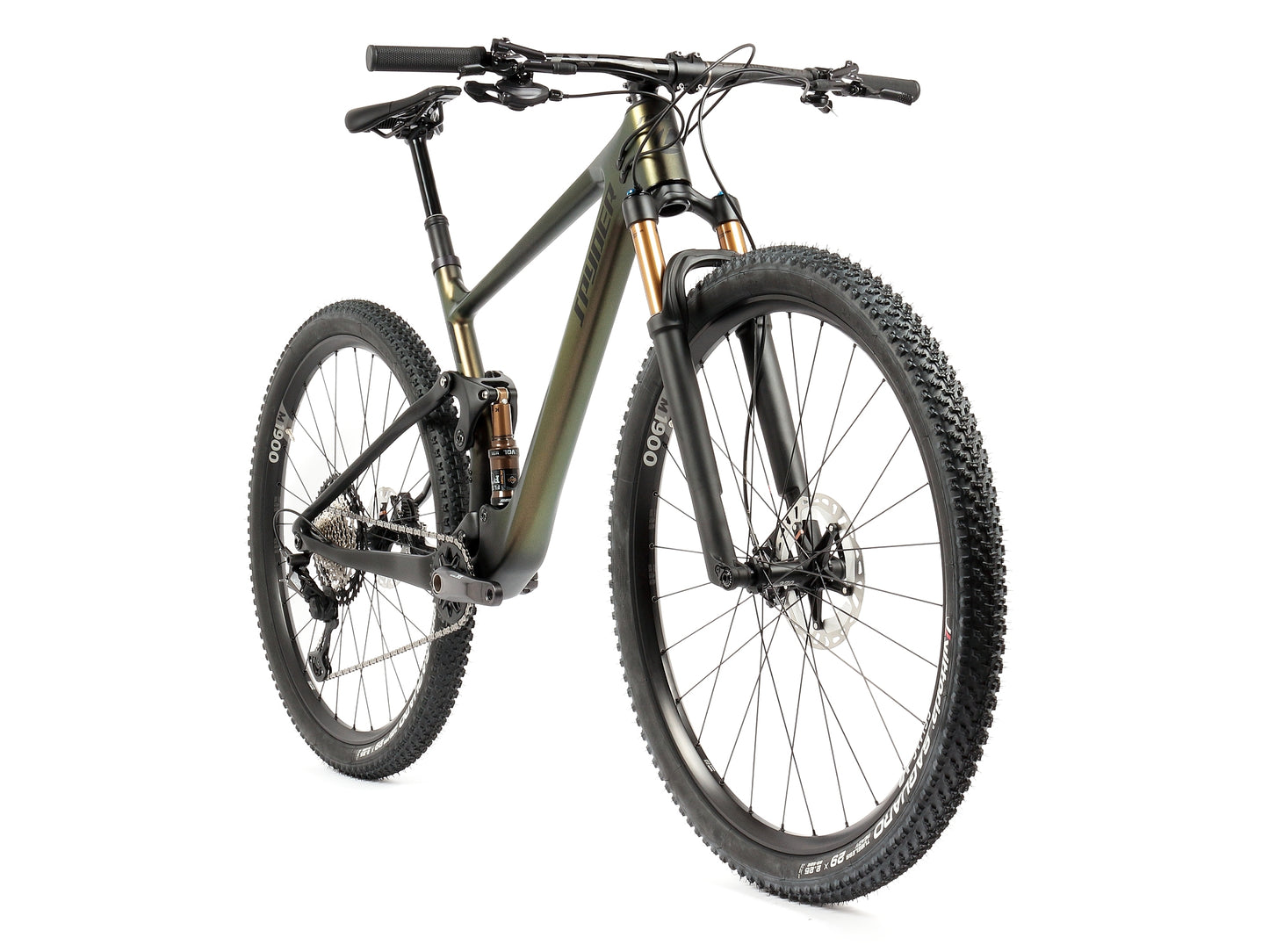

The Spyder Cross 29" is an ultralight full suspension race bike built for top performance in XC and marathon racing. The combination of a carbon frame , RockShox SID Select Charger SL fork (100 mm) and a FOX Float DPS Factory Trunnion shock provides precision, control and suspension at the highest level.
Fully specced with Shimano’s XT M8100 1x12 groupset , 180mm rotors with cooling fin brakes, a DT Swiss wheelset and an FSA carbon cockpit — this bike is designed for riders who don’t compromise.

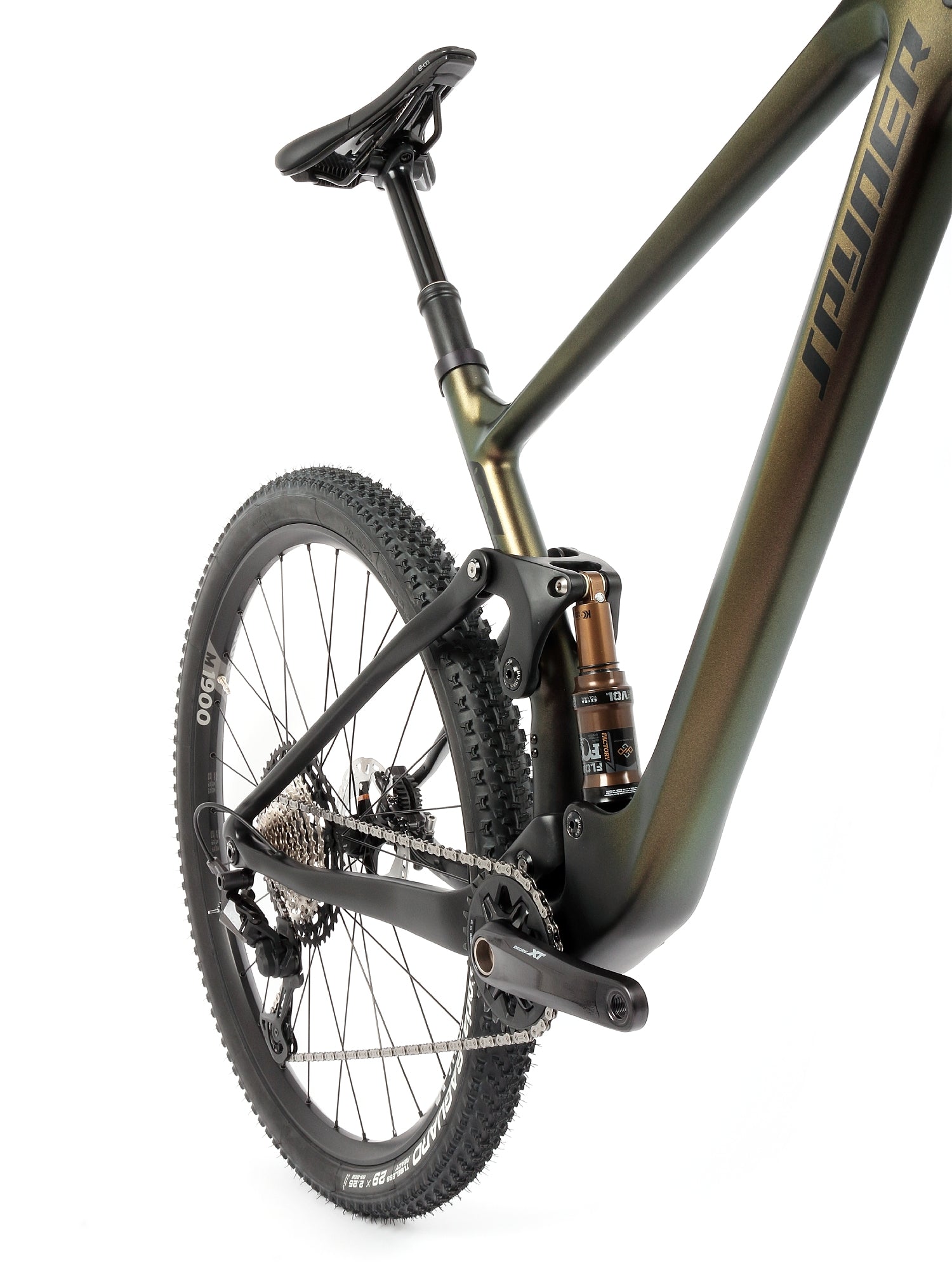

Frame and Suspension
Full suspension carbon frame MTB 29" Spyder Cross
RockShox SID Select Charger SL fork, DebonAir, Boost 15x110 mm, 100 mm travel

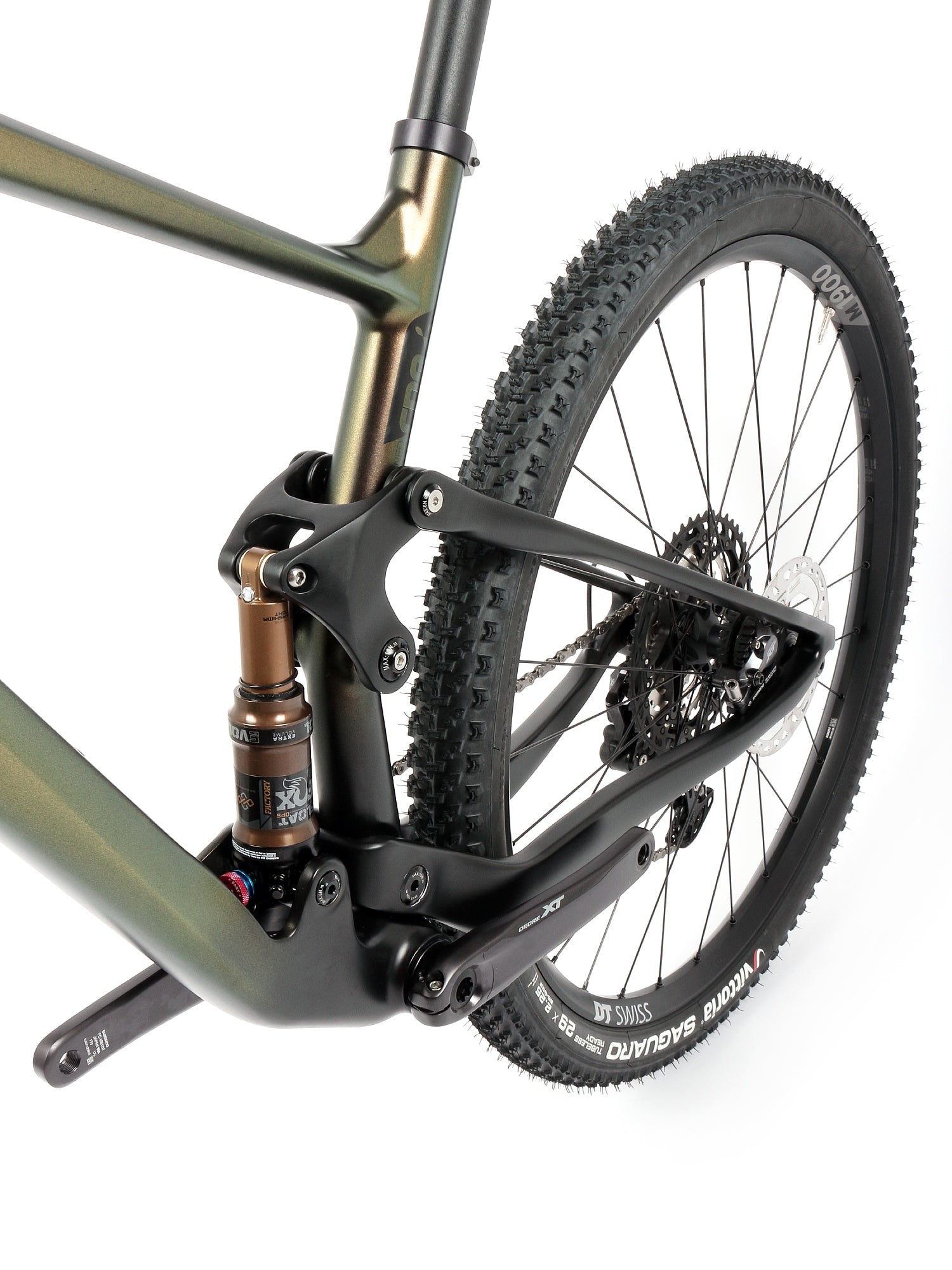

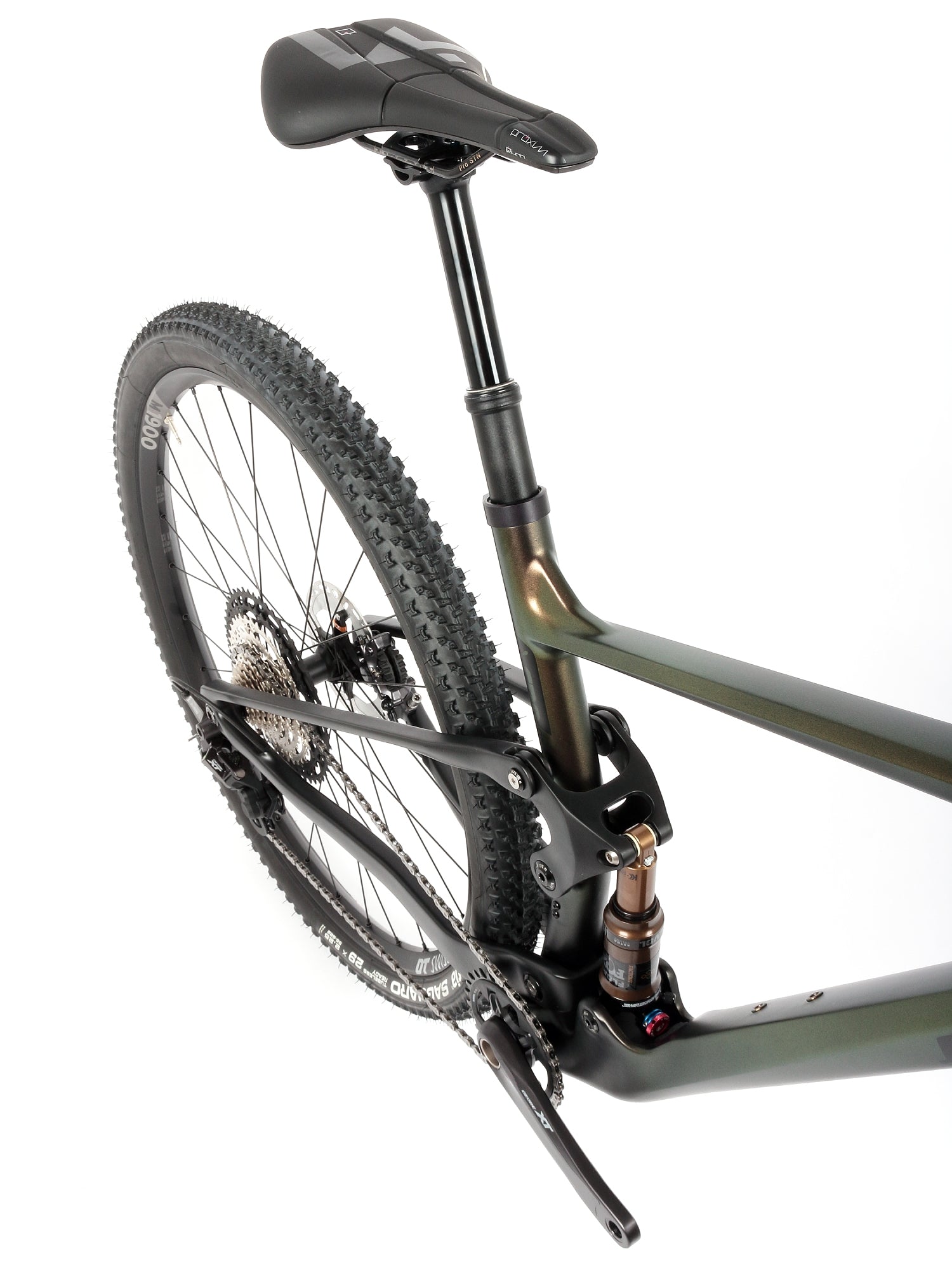

FOX FLOAT DPS Factory Trunnion rear shock, 165x40 mm
RockShox TwistLoc 2-position lockout remote on handlebars (front + rear)

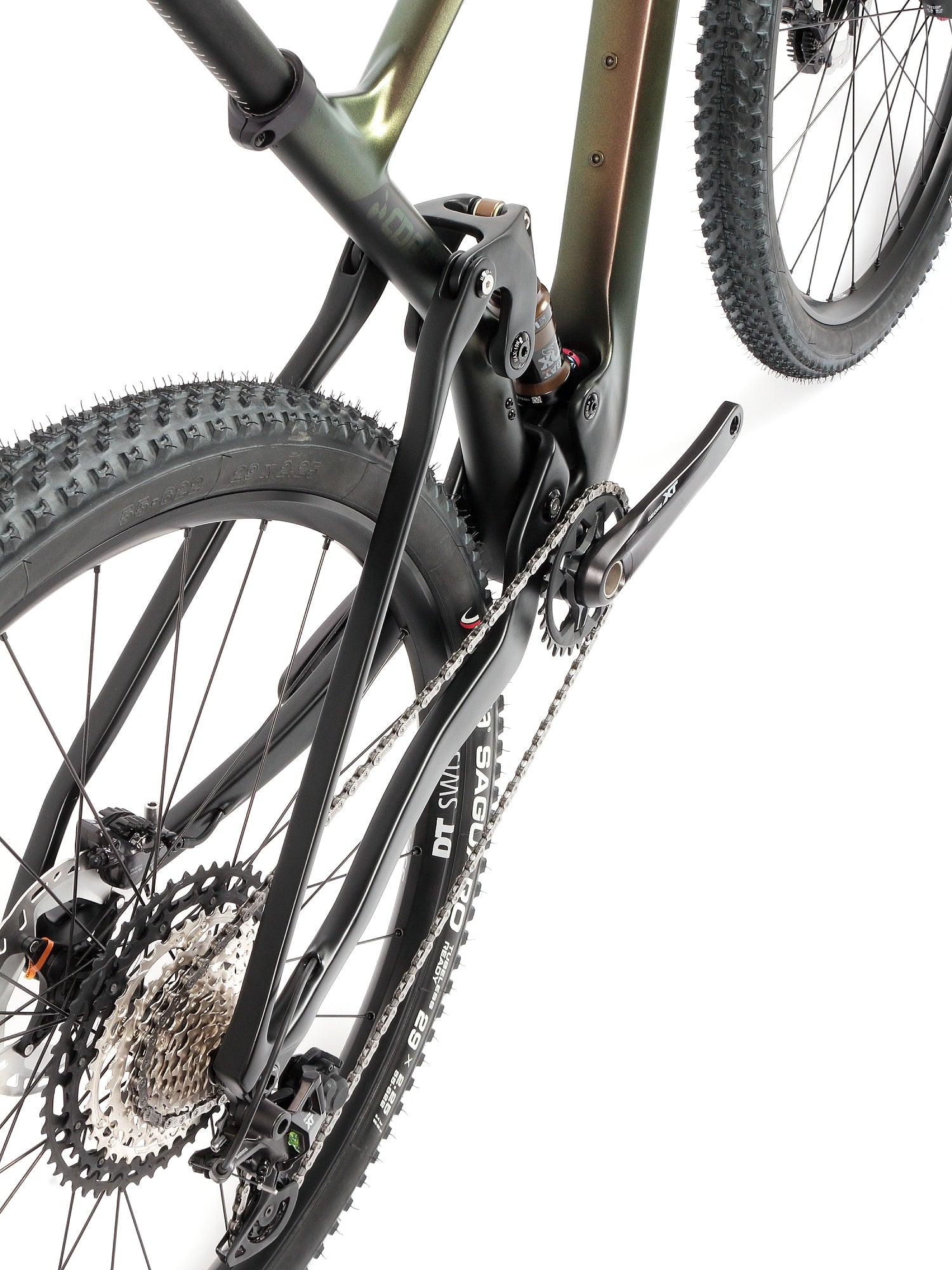

Drive

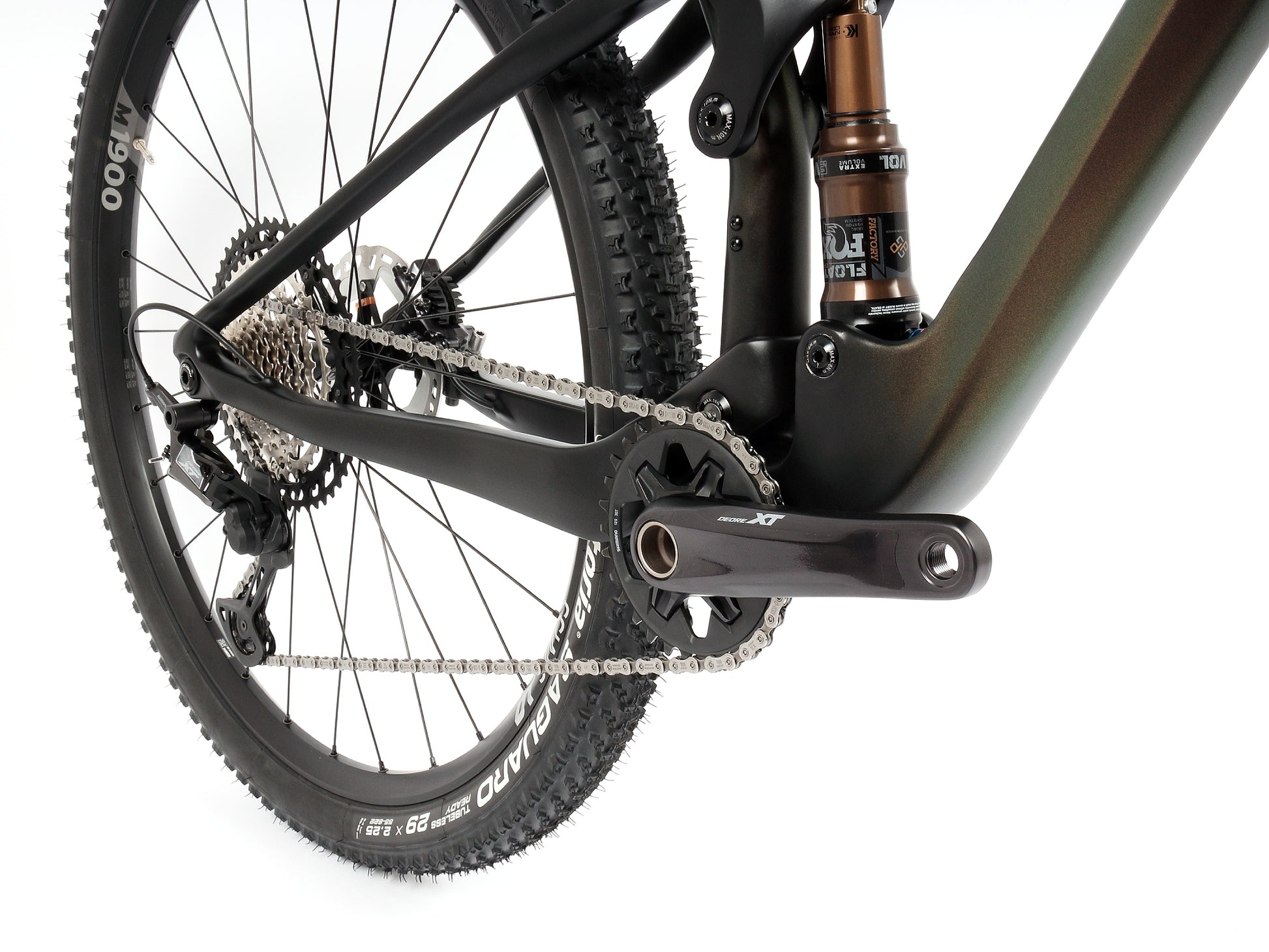

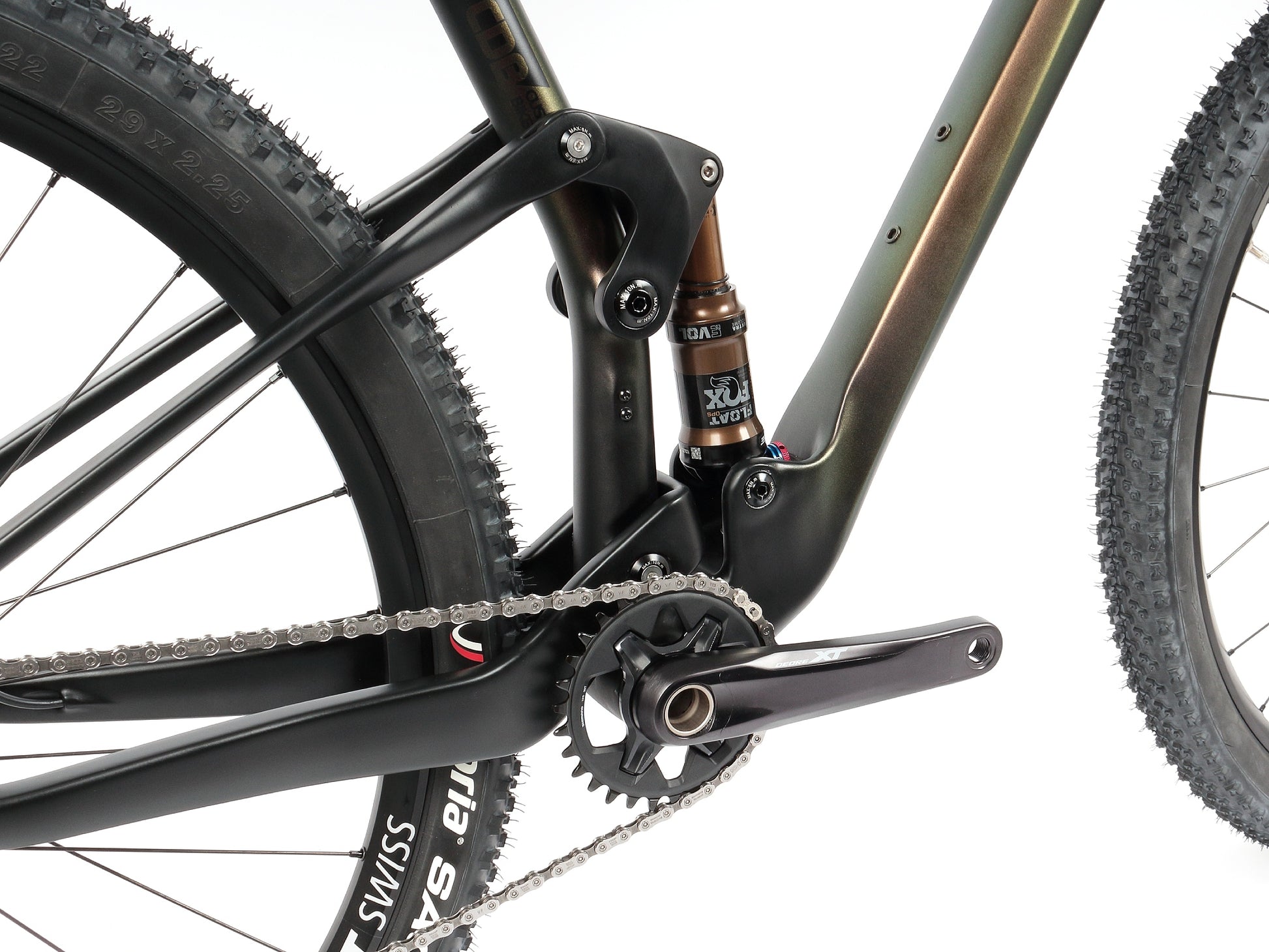

Crankset Shimano XT FC-M8100-1, 170mm, 34T
Shifter Shimano XT SL-M8100, 12-speed
Rear derailleur Shimano XT RD-M8100 SGS, 12-speed
Cassette Shimano XT CS-M8100, 12-speed, 10-51
Chain KMC X12, 12-speed, 126 links
Bottom bracket TOKEN BB 841 PS PressFit 41x86-92
Brake system
Front brake Shimano XT BR-M8100 hydraulic, 1000 mm, with cooling fins

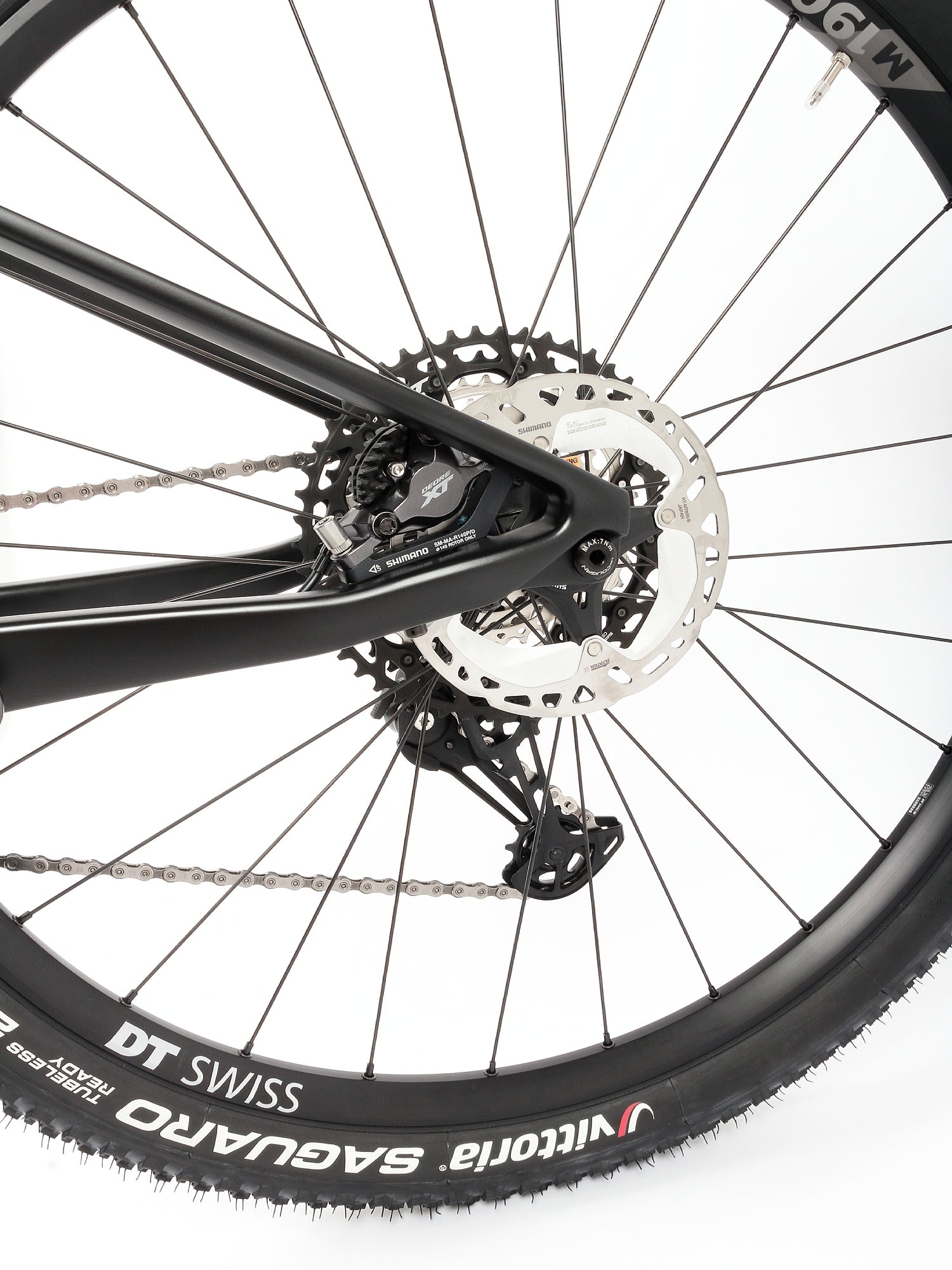

Rear brake Shimano XT BR-M8100 hydraulic, 1700 mm, with cooling fins
Brake discs Shimano RT-EM810, 180 mm, Center Lock (front and rear)
Wheels and Tires
Wheelset DT Swiss M1900 Spline 30 mm, Boost, Micro Spline 12-speed
Tires Vittoria Saguaro XC TLR 29x2.25, kevlar folding
Inner tubes Pirelli Sportube 29x2.1–2.3, Presta valve 48 mm
Cockpit and Saddle
Handlebar FSA KFX Riser carbon, 760 mm wide, 18 mm rise, 31.8 mm
Stem Wide On Zenith, 80 mm, black
Saddle Prologo Proxim W400 ProSTN Sport
Seatpost Limotec Alpha 1 dropper post, 31.6 mm diameter, 125 mm travel, 400 mm length
